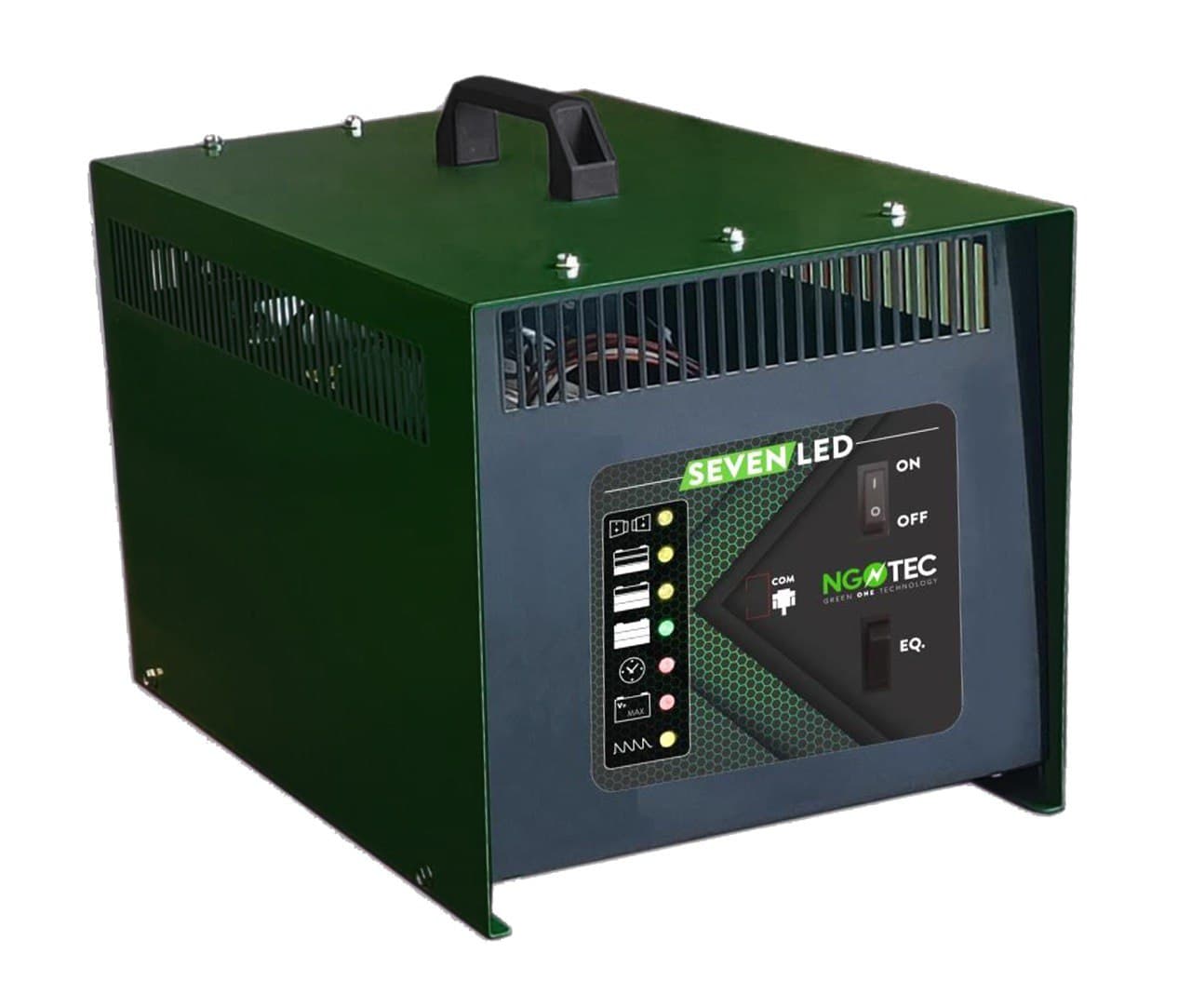

The products of the POSEIDON series are extremely compact and equipped with a microprocessor control board and SETTE LED display to display the general status of the charge. It is an intuitive interface to a safe and reliable product,easy touse and with a high charging efficiency of more than 85%.

The chargers can be requested with single-phase mains voltage 230Vac, or single-phase 240Vac. Other voltages are available on request.

The electronic board 7 LED allows you to view the status of Charge:

  • Connected battery
  • Bulk Charge
  • Carica finale (Absorption Charge)
  • Carica terminata (End of Charge)
  • Battery voltage OK, below minimum threshold (1.7 Vc), above maximum threshold
  • Charge timeout
  • Equalization Enabled
  • The dip switches and the trimmer of the board allow you to program:
  • Autostart time
  • Final charging time
  • Security Timer
  • Gas Point Voltage
  • Proportional Charge Enablement

POSEIDON is the ideal product for charging electric pallet trucks, stackers, club cars, internal industrial cleaning machines and aerial platforms.

IDEAL FOR

DATA SHEET
